Single Stage Vortex Pumps: Versatile Solutions for Handling Challenging Fluids

In the realm of industrial pumping solutions, the Single Stage Vortex Pump has emerged as a versatile and highly effective option for managing fluids containing solids, fibrous materials, and debris. Known for their robust design and ability to handle difficult media without clogging, these pumps are increasingly favored across a range of industries that require reliable and efficient fluid transfer.

What Sets Single Stage Vortex Pumps Apart?

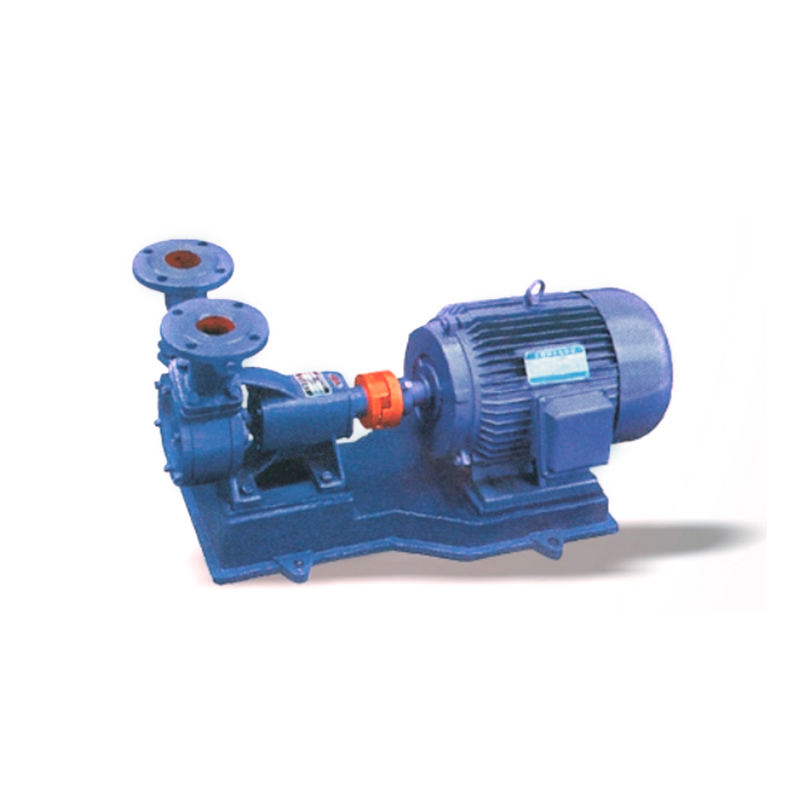

A single stage vortex pump is a centrifugal pump variant characterized by a unique impeller design that creates a vortex or swirling motion within the pump casing. Unlike traditional impellers that push fluid directly, the vortex pump’s impeller induces a swirling flow that gently guides solids and suspended particles through the pump without direct contact or obstruction. This design significantly reduces the risk of clogging and abrasion.

The “single stage” aspect indicates that the pump uses one impeller and volute assembly, making it simpler, lighter, and easier to maintain compared to multi-stage alternatives. This design suits applications requiring moderate pressure and flow but where fluid characteristics are complex or challenging.

Key Advantages Driving Industry Adoption
Non-Clogging Capability: The vortex action prevents solids from becoming trapped or damaging pump components, making it ideal for sewage, wastewater, and slurry applications.

Gentle Fluid Handling: The pump is suited for shear-sensitive fluids, damage to fragile solids such as biological materials or suspended debris.

Simple and Compact Construction: With fewer moving parts, single stage vortex pumps offer straightforward installation, operation, and maintenance.

Self-Priming Potential: Some models can handle air-liquid mixtures or operate partially dry, offering flexibility in various pumping scenarios.

Adaptability to Solids Size: The wide, open passages accommodate large solids and fibrous materials without clogging or performance loss.

Innovations Improving Performance and Efficiency
Modern single stage vortex pumps incorporate technological advancements that enhance their efficiency and durability:

Optimized Hydraulic Design: Advances in impeller and volute geometry reduce turbulence and hydraulic losses, improving energy efficiency and flow stability.

Enhanced Materials: Use of abrasion-resistant alloys, stainless steel, or specialty coatings increases longevity in harsh or corrosive environments.

Sealing Solutions: Improved mechanical and gland seal arrangements reduce leakage and maintenance needs, particularly in wastewater or chemical applications.

Variable Frequency Drive (VFD) Integration: VFDs enable precise control of pump speed, optimizing performance and reducing energy consumption based on demand.

Smart Monitoring: Sensors tracking vibration, temperature, and flow provide real-time data for predictive maintenance and operational reliability.

Broad Industry Applications
Due to their ability to handle challenging fluids, single stage vortex pumps are widely used in various sectors:

Municipal Wastewater Treatment: Pumping raw sewage, sludge, and grit-laden water without clogging or damage.

Industrial Effluent Handling: Managing process water, chemical slurries, and contaminated liquids in manufacturing and processing plants.

Mining and Mineral Processing: Transporting abrasive slurries, tailings, and mixed solids where abrasion resistance is critical.

Food and Beverage Industry: Handling viscous or particulate-laden fluids gently to preserve product integrity.

Construction and Dewatering: Removing water mixed with solids from construction sites, trenches, or flooded areas.

Real-World Impact and Success Stories
Wastewater Plant Upgrade: A municipal wastewater treatment facility replaced traditional pumps with single stage vortex models, resulting in a 25% reduction in clogging incidents and lower maintenance costs.

Chemical Plant Application: A chemical manufacturer employed vortex pumps to transfer corrosive slurry mixtures, leveraging their material compatibility and seal reliability to improve uptime.

Mining Site Efficiency: A mining operation saw improved slurry transfer rates and reduced wear after installing abrasion-resistant vortex pumps, extending service intervals by 30%.
