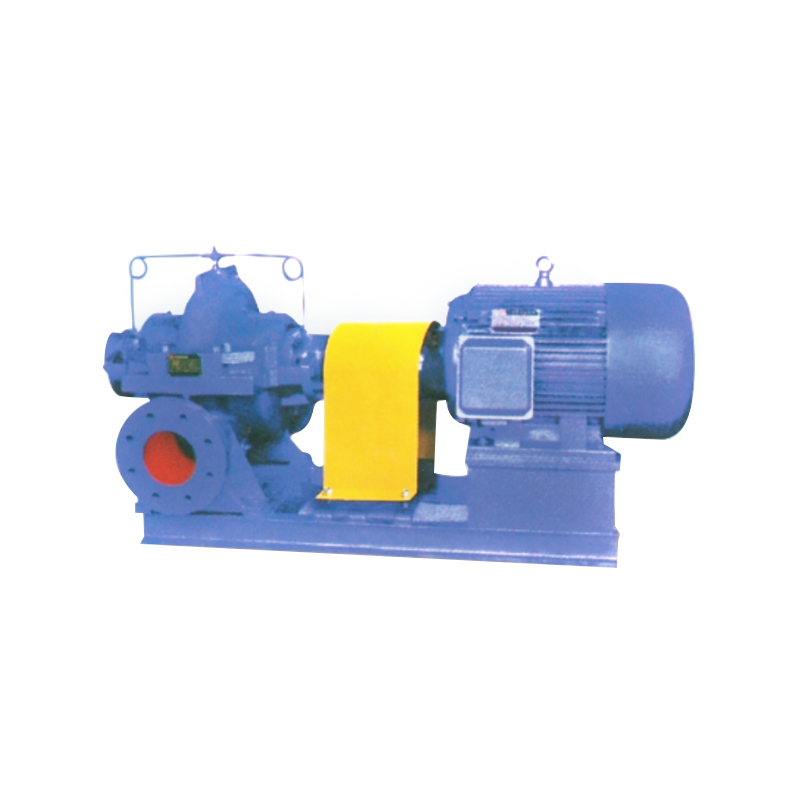

SOW Horizontal Split-Casing Double-Suction Centrifugal Pump

The SOW Horizontal Split-Casing Double-Suction Centrifugal Pump is designed primarily for the transportation of clean water or liquids with similar physical and chemical properties to water, with a maximum temperature of 105°C. It is suitable for various applications such as water supply systems in water treatment plants, pump stations, power plants, air conditioning circulating water, heating water circulation, industrial water supply systems, firefighting systems, ships, and the oil refining industry (for general liquids).

Get A Quote Contact Us

D Type Horizontal Multistage Centrifugal Pump SLB Detachable Vertical Single-stage Double Suction Centrifugal Pump

Describe Parameter Get A Quote

Operating Data
Outlet diameter: DN = 80~500mm
Flow rate: 50~4200m³/h (rated point)
Head: H = 7.6~160m (rated point)
Maximum working pressure: 2.5MPa
Maximum test pressure: 3.75MPa
Medium: Clean water or other liquids with similar physical and chemical properties to clean water (solid particles ≤ 80mg/L)
Temperature: ≤ 105°C

Hydraulic Performance
The optimized hydraulic model ensures not only nice hydraulic performance but also eliminates axial force (theoretically), which is a common issue that affects the operation of pumps, especially large-scale pumps. The pump body, pump cover, and impeller are precisely cast, and the smooth flow surfaces enhance the pump’s anti-cavitation performance and efficiency.

Sealing
Depending on the conveying medium or user requirements, either packing seals or mechanical seals are used, without any restrictions on rotation direction. For packing seals, there is sufficient space for easy replacement of the packing.

Operating Conditions
Maximum allowable working pressure is 2.5MPa: that is, the pump inlet pressure + pump head ≤ 2.5MPa. Based on the maximum pressure the pump casing can withstand, the pump body and cover materials are selected from gray cast iron (1.6MPa), ductile iron (2.0MPa), or cast steel (2.5MPa). Please specify the pressure conditions or material requirements when placing an order.
Medium: Clean water or other liquids with physical and chemical properties similar to clean water, with a temperature ≤ 105°C and solid particles ≤ 80mg/L.

Bearings
The pump uses closed rolling bearings lubricated with grease, requiring minimal maintenance and providing a long service life.
The bearings are equipped with oil cups to maintain a constant oil level and can also be lubricated with thin oil.
Imported high-quality bearings (SKF, NSK, NTN) are used to ensure smooth operation, low noise, and long service life.

Structure
The pump features a compact and stable structure with a horizontal split casing design. The pump’s inlet and outlet are located on the pump body, making it easy to perform maintenance by simply removing the pump cover and rotor components without dismantling the pipeline. This design simplifies the maintenance process. The electric motor (driver) can be positioned on either the left or right side, facilitating on-site installation. The rotor component's axial size is minimized to improve shaft rigidity, resulting in more stable and reliable operation. The pump body includes a sealing ring, and the impeller sealing ring is optional. The sealing rings can be replaced after wear, reducing maintenance costs during operation.

Performance Parameter

Type	Flow rate(m³/h)	Lift	Rotation speed	Efficiency%	Shaft power	Motor power	Cavitation allowance	Suction calibre
80-220(I)	82.8	13.8	1450	82	3.8	5.5	2.1	125
	1638	55	2900	82	29.9	37	5.1	125
80-220	65.2	2.8	1450	81	2.8	4	2.2	125
	133.6	51	2900	81	22.9	30	4	125
80-220(I)	103.7	22.5	1450	78.5	8.1	11	2.8	125
	207	90	2900	78.5	64.6	75	7.0	125
80-280	85.3	20.7	1450	77	6.2	7.5	2.4	125
	171	82.5	2900	77	49.9	75	7.0	125
80-350(I)	113.4	38.8	1450	71.5	16.7	22	2.8	125
80-350	99	35.5	1450	73	13.1	15	3.0	125
100-260(I)	144	18.8	1450	82.5	8.9	11	2.9	150
	288	75	2900	82.5	71.3	90	9.0	150
100-260	122.4	17	1450	81.5	7	11	2.4	150
	244.8	68	2900	81.5	55.6	75	8.6	150
100-320(I)	184.7	31.2	1450	80	19.6	22	3.1	150
	367.2	12.3	2900	80	153.8	200	13.7	150
100-320	140.4	29.5	1450	78	14.1	18.5	2.7	150
	282.6	119	2900	78	117.4	132	10.2	150
100-400(I)	184.5	52	1450	73	35.8	45	3.0	150
100-400	162	52	1450	72	31.4	37	3.6	150
125-240(I)	273.6	14.8	1450	85.5	13	18.5	2.3	200
	532.7	60	2900	85.5	101.8	132	9.9	200
125-240	255.6	15.1	1450	84.5	12.4	15	2.7	200
	471.6	60.5	2900	84.5	92	110	12.1	200
125-300(I)	269	27	1450	84	23.6	30	2.4	200
	534.6	108	2900	84	187.2	200	10.9	200
125-300	241.2	25	1450	83	19.8	30	2.4	200
	478.8	100	2900	83	157.1	200	10.9	200
125-380(I)	309.6	47	1450	80	49.5	75	2.6	200
125-380	277.2	43	1450	79	41.1	55	2.9	200
125-480(I)	327.6	76	1450	80	84.8	110	2.8	200
125-480	293.4	69.5	1450	79	70.3	90	3.2	200
150-280	442.8	21	1450	87	29.1	37	2.9	200
150-280(I)	396	20.4	1450	86	25.6	30	3.0	200
150-350(I)	446.4	38	1450	85	54.3	75	3.0	200
150-350	406.8	35	1450	84	46.2	55	3.0	200
150-450(I)	514.8	66	1450	82	112.8	132	3.5	200
150-450	439.2	60	1450	81	88.6	110	3.9	200
150-570(I)	593.2	105	1450	80	208.5	250	4.2	200
150-570	536.4	90	1450	79	166.4	200	4.7	200
200-340(I)	694.8	30	1450	87.5	64.9	75	3.8	250
200-340	637.2	28	1450	86.5	56.2	75	3.0	250
200-410(I)	709.2	52	1450	86.5	116.1	132	3.9	250
200-410	648	48	1450	85.5	99.1	110	3.5	250
200-530(I)	817.2	91	1450	83	244	280	4.0	250
200-530	734.4	81.7	1450	83	199.3	250	3.5	250
200-660(I)	792	150	1450	80	404.4	450	3.6	250
200-660	720	132.5	1450	79	328.9	400	3.4	250
250-390(I)	1051.2	39	1450	88	126.9	160	4.7	300
250-390	1029.6	37	1450	87	119.2	132	4.7	300
250-470(I)	1173.6	66	1450	87	242.5	280	4.05	300
250-470	1080	54.5	1450	84	190.8	220	4.1	300
250-610(I)	1242	116	1450	84	467.1	560	4.6	300
250-610(I)	1242	116	1450	84	467.1	560	4.6	300
250-610	1044	104	1450	83	356.7	400	3.7	300
300-330(I)	1098	24.5	1450	86	85.2	110	5.3	350
300-330	936	23	1450	85	69.0	90	4.1	350
300-450(I)	1677.6	53	1450	88	275.2	315	7.1	400
300-450	1620	51.5	1450	87.5	259.6	315	6.9	400

Type	Flow rate(m³/h)	Lift	Rotation speed	Efficiency	Shaft power	Motor power	Cavitation allowance	Suction calibre
Type	Flow rate(m³/h)	Lift	Rotation speed	Efficiency	Shaft power	Motor power	Cavitation allowance	Suction calibre
300-550(I)	1764	94	1450	86	519.7	630	5.7	400
300-550	1548	80	1450	84.5	399.1	450	5.15	400
300-710(l)	1836	160	1450	85	941.2	1120	4.95	400
300-710	1688.4	139	1450	83.5	769.4	900	5.15	400
350-380(l)	1731.6	32	1450	86.5	174.5	200	3.05	400
350-380	1422	31	1450	85.5	140.4	160	6.2	400
350-440(l)	2743.2	43.5	1450	87.5	371.4	450	12.2	450
350-440	2232	42.5	1450	86.5	298.6	355	9	450
350-520(I)	2610	70	1450	88.5	562.2	630	10.7	400
350-520(I)	2610	70	1450	88.5	562.2	630	10.7	400
350-520	2448	67	1450	88	507.6	630	9.9	400
350-640(I)	2196	125	1450	85	879	1000	7	450
400-550(I)	2628	86	1450	85	724	800	7	500
400-550	2196	63.5	1450	86	442	500	5.6	500
400-600(I)	3150	113	1450	86	1127	1250	7.5	500
400-600	2484	90	1450	86	708	800	6.8	500
500-520(I)	3240	25	960	87	260	315	5	600
500-520	2770	22	960	86	200	220	4	600
500-520	2770	22	960	86	200	220	4	600
500-650(I)	3450	42	960	88.5	460	500	55	600
500-650	3000	35	960	87	315	355	5.0	600
500-710(I)	3900	65	960	88.5	800	900	5.3	600
500-710	3000	50	960	87	465	560	5.5	600
500-800(I)	3600	80	960	89	1040	1120	7.0	600
500-800	3300	62	960	88	700	800	5.0	600
500-860(I)	4200	112	960	89	1450	1600	6.8	600
500-860	3600	90	960	88.5	1020	1120	5.5	600
600-540-A	4680	24	960	87	365	400	6.0	700
600-540-B	3960	20	960	85	260	280	6.0	700
600-620-A	4680	39	960	88	580	630	8.0	700
600-620-B	3700	33	960	87	400	450	6.0	700
600-620-B	3700	33	960	87	400	450	6.0	700
600-710-A	4620	58	960	89	819	900	5.8	700
600-710-B	3600	54	960	88	600	710	5.0	700
600-830-A	5500	84	960	89	1412	1600	8.8	700
600-830-B	4320	66	960	88	920	1000	5.8	700
700-590-A	6500	31	960	87	630	710	8.0	800
700-590-B	5000	24	960	87	380	400	8.0	800
700-710-A	6480	44	960	87	880	1000	7.8	800
700-710-B	5680	40	960	86	700	800	8.5	800
700-820-A	7400	80	960	89	1800	2000	8.5	800
700-820-B	5400	60	960	88	1020	1120	6.5	800
700-820-B	5400	60	960	88	1020	1120	6.5	800
800-740-A	9000	26	721	87	780	900	6.8	900
800-740-B	7200	22	725	86	510	560	6.0	900
800-840-A	9000	46	725	88	1300	1400	6.0	900
800-840-B	7560	43	725	87	1050	1120	6.0	900
800-970-A	9700	62	725	89	1860	2000	6.0	900
800-970-B	7920	52	725	89	1300	1400	5.8	900
900-1050-A	13680	56.5	590	92	2287	2500	6.2	100
250-800	1296	216	1485	83	919	1120	4.5	300
250-800	1296	216	1485	83	919	1120	4.5	300
400-675	2232	69.2	985	88	478	560	3.7	500
400-900	2880	135	985	88	1204	1400	6.5	500
600-670	6480	40	980	89.5	789	900	7.6	700
600-670	6480	40	980	89.5	789	900	7.6	700
800-670	6480	14.5	590	87.5	292	355	3.6	900
900-970	12200	33	590	90.5	1213	1400	5.8	1000
1000-1170	16236	31.1	490	92	1496	1600	5.4	1200
