CQB Stainless Steel Magnetic Drive Centrifugal Pump

The CQB Stainless Steel Magnetic Drive Centrifugal Pump (also known as the Magnetic Pump) typically consists of an electric motor, a magnetic coupling, and a corrosion-resistant centrifugal pump.

Get A Quote Contact Us

ZCQ Self-priming Magnetic Drive Pump CQB-F Fluoroplastic Magnetic Drive pump

Describe Parameter Get A Quote

Its main feature is the use of a magnetic coupling to transmit power, ensuring a completely leak-free operation. When the electric motor drives the outer magnetic steel of the magnetic coupling to rotate, the magnetic field lines pass through the gap and isolation sleeve, acting on the inner magnetic steel. This causes the pump rotor to rotate synchronously with the motor, transmitting torque without any mechanical contact. At the power input end of the pump shaft, the liquid is sealed within the stationary isolation sleeve, and due to the absence of dynamic seals, the pump operates with zero leakage. The CQ series magnetic pumps were developed by the National Joint Design Group for Magnetic Pumps and represent a new generation of completely leak-free, corrosion-resistant pumps. Their technical and economic indicators are comparable to foreign products from the late 1980s. The design and basic parameters of the CQ series magnetic pumps comply with the JB/T7742-1995 "Small Magnetic Drive Centrifugal Pump Types and Basic Parameters" standard and the supplementary provisions for small magnetic drive centrifugal pumps.

The CQB Stainless Steel Magnetic Drive Centrifugal Pumps are suitable for industries such as petroleum, chemicals, pharmaceuticals, metallurgy, electroplating, environmental protection, food, film washing, water treatment, and defense. They are ideal equipment for transporting flammable, explosive, volatile, toxic, precious liquids, and various corrosive liquids. These pumps are suitable for transferring liquids that do not contain hard particles or fibers and contain magnetic substances, with the following conditions: suction pressure not exceeding 0.2 MPa, maximum working pressure of 1.6 MPa, a temperature not exceeding 100°C, density not exceeding 1600 kg/m³, and viscosity not exceeding 30 x 10⁻⁶ m²/s.

Certificate

From material traceability to performance testing, from energy efficiency optimization to environmental compliance, we fulfill our commitment with strength - ensuring that every fluid solution can withstand professional inspection, and providing "zero risk" cooperation guarantee for customers in the industrial, municipal, and fire protection fields.

ABOUT US

Zhejiang Chuangken Fluid Co., Ltd.

Zhejiang Chuangken Fluid Co., Ltd. was established in 2005 with a registered capital of 10.8 million yuan. It is a technology-innovative enterprise that combines research and development with production, specializing in the production of multi-stage pumps, centrifugal pumps, fire pumps, sewage pumps, complete sets of water supply equipment, control cabinets and other products. Since its establishment, "Chuangken" has always adhered to the business development path of technological innovation, and is a comprehensive enterprise dedicated to the research, development, manufacturing and sales services of international high-quality fluid industrial products. We believe in the power of technological innovation. In 2015, the ternary fluid theory and various model technologies and processing technologies were used, and the products were continuously optimized through absorption, transformation and innovation. According to the different media, the corresponding materials and structures are used, so that a series of products have been widely used and popularized. "Chuangken" has important application partners in the fields of aviation, chemical industry, chemical fiber, pharmaceuticals, food, papermaking, metallurgy, HVAC, electricity, energy, environmental protection engineering, and life supporting. In 2019, "Chuangken" successfully became a teaching, learning and research cooperation unit with Ningbo Institute of Technology, Taiyuan University of Technology, Tianjin Polytechnic University School of Chemical Engineering and Technology, Guangdong Environmental Protection Engineering Vocational College, Karamay Vocational and Technical College, Liming Vocational University, Weifang Vocational and Technical College, Yunnan Open University and other colleges and universities with excellent quality and technology, allowing "Chuangken" to contribute to the cultivation and delivery of professional talents in China's pump and valve industry. Technological research and development, mature products, excellent quality, and perfect after-sales service have always been our strategic policy.

Message Feedback

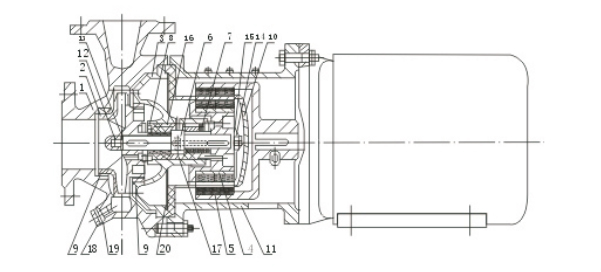

1	2	3	4	5	6	7	8	9	10
Pump body	Impeller	Bearing body	Inner magnet assembly	External magnet assembly	Pump shaft	Bearing	Front and rear thrust rings	Seal ring	Isolation sleeve
11	12	13	14	15	16	17	18	19	20
Coupling frame	Impeller nuts	Stop washers	Nut	Washers	Shaft sleeve	Locating sleeve	Pipe plugs	Cushion	Cushion

Type	Flow rate	Lift(m)	Rotation speed	Efficiency%	Motor type	Motor power

CQB32-20-125	3.2	20	2900	35	YB802-2	1.1

CQB32-20-160	3.2	32	2900	35	YB90S-2	1.5

CQB40-25-105	6.3	12.5	2900	45	YB802-2	1.1

CQB40-25-125	6.3	20	2900	42	YB90L-2	2.2
CQB40-25-160	6.3	32	2900	35	YB100L-2	3
CQB40-25-200	6.3	50	2900	28	YB13S1-2	5.5
CQB50-40-85	12.5	8	2900	56	YB802-2	1.1
CQB50-32-105	2.5	12.5	2900	54	YB90L-2	2.2
CQB50-32-125	12.5	20	2900	50	YB100L-2	3
CQB50-32-160	12.5	32	2900	46	YB112M-2	4
CQB50-32-200	12.5	50	2900	39	YB132S2-S	7.5
CQB50-32-250	12.5	80	2900	30	YB160L-2	18.5
CQB65-50-125	25	20	2900	58	YB132S1-2	5.5
CQB65-50-160	25	32	2900	56	YB132S2-2	7.5

CQB65-40-200	25	50	2900	49	YB160M-2	15
CQB65-40-250	25	80	2900	46	YB180M-2	22

CQB80-65-125	50	20	2900	66	YB132S2-2	7.5
CQB80-65-160	50	32	2900	64	YB160M-2	15

CQB80-50-200	50	50	2900	60	YB160L-2	18.5
CQB80-50-250	50	80	2900	55	YB200L1-2	30

CQB100-80-125	100	20	2900	72	YB160M-2	15
CQB100-80-160	100	32	2900	70	YB160M-2	22
CQB100-65-200	100	50	2900	68	YB200L1-2	30
CQB100-65-250	100	80	2900	64	YB225M-2	45
