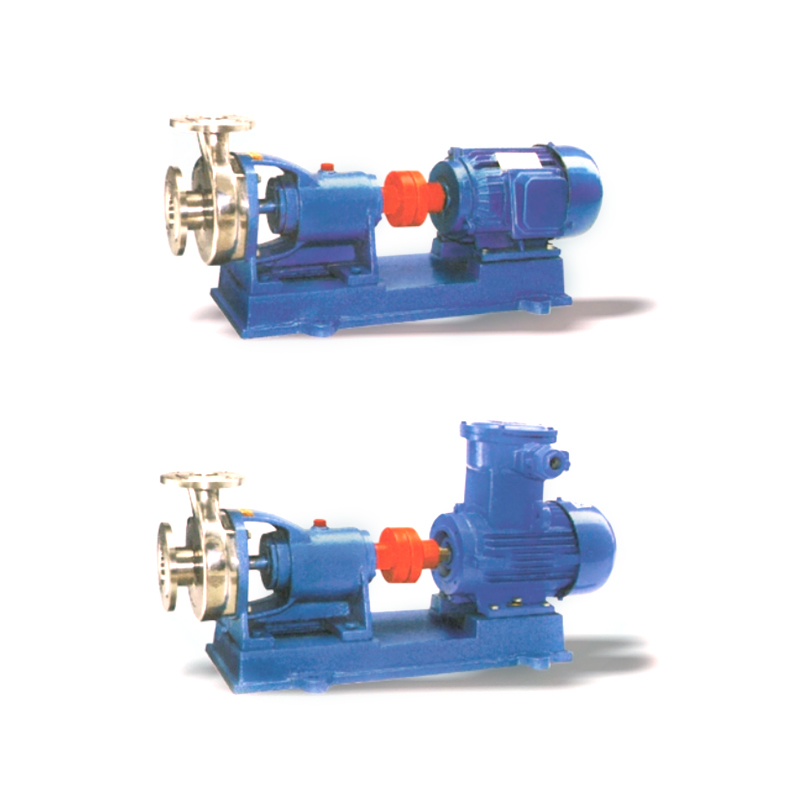

HB Horizontal Stainless Steel Corrosion Resistant Centrifugal Pump

The HB series is a self-developed horizontal stainless steel corrosion-resistant centrifugal pump. The impeller of this series of pumps is available in both semi-open and closed configurations.

Get A Quote Contact Us

HBX Stainless Steel Corrosion-Resistance Self-Priming Pump HBFX Stainless Steel Anti-corrosive Self-Priming Centrifugal Pump

Describe Parameter Get A Quote

The shaft seal employs the advanced cantilever mechanical seal technology from West Germany. This product integrates nice structure, performance, and design, with key components such as the flow parts and connecting frame made from high-quality stainless steel. As a result, the HB series pumps offer reliable corrosion resistance, ease of use and maintenance, compact structure, low energy consumption, and sealing performance, among other advantages.

Technical Specifications
Flow Rate: Up to 109 m³/h (depending on model)
Max Head: 57 meters
Temperature Range: -10°C to 150°C (depending on configuration)
Material: High-grade stainless steel (304, 316L, or other alloys available upon request)
Sealing Type: Mechanical seal with cantilever technology
Drive Options: Electric motor, hydraulic motor, or other custom options
Voltage & Frequency: Available in various voltage and frequency configurations to meet international standards

Main Applications
The HB Horizontal Stainless Steel Corrosion Resistant Centrifugal Pump is capable of handling liquids with temperatures up to 120°C (for direct-coupled versions) or up to 150°C (for versions with bearing brackets). It can transport liquids containing (or not containing) fine soft particles or fibers, as well as liquids that are corrosive or have sanitary requirements. This pump is widely used in industries such as food and beverage, pharmaceuticals, wastewater treatment, chemicals, electroplating, dyeing, and fine chemicals.

Performance Parameters

Type	фmm		Lift(m)								Cavitation allowance	Power	Rotational speed	Voltage

	Inlet	Outlet

40HB-13	40	25	H	16	15	53	13	11	8	12	3.5	0.55	2800	380
			Q	25	4.5	5.3	6	8.3	10.8
40HB-13A	40	25	H	16	15	14	13	11	8	6	3.5	0.75	2800	380
			Q	2.5	4.5	5.3	6	8.3	10.8	12
50HB-18	50	40	H	23	22	20	18	16	15	14	3.5	1.5	2800	380
			Q	1.5	43	9	13	15.5	16.5	17.6
50HB-22	50	40	H	27	26	24	22	20	19	18	3.5	2.2	2800	380
			Q	27	10	16	19	22	23	24
50HB-23	50	32	H	26	25	24	23	20	17	14	3.5	1.5	2800	380
			Q	7	8	9	10	13	16	18
50HB-25	50	40	H	32	30	27	25	24	22	19	3.5	3	2900	380
			Q	5	12	19	23	24	26	28
50HB-28	50	32	H	34	32	30	28	25	22	19	3.5	2.2	2800	380
			Q	4	8	10	13	15	17	19
50HB-32	50	32	H	37	36	34	32	29	26	23	3.5	3	2900	380
			Q	6	9	13	15	18	21	24
50HB-38	50	32	H	44	42	40	38	35	32	29	3.5	4	2900	380
			Q	9	12	14	16	19	22	24
65HB-28	65	50	H	32	30	28	25	23	21	18	3.5	4	2900	380
			Q	14	20	25	29	32	34	36
65HB-32	65	50	H	36	34	32	29	26	23	20	3.5	5.5	2900	380
			Q	14	20	25	30	35	38	40
65HB-40	65	40	H	46	44	42	40	38	35	32	3.5	5.5	2900	380
			Q	16	19	22	25	27	30	32
65HB-50	65	40	H	57	55	53	50	47	44	40	3.5	7.5	2900	380
			Q	12	18	21	25	28	31	33
80HB-13	80	65	H	16	15	14	13	12	11	10	3.5	2.2	2800	380
			Q	25	30	35	37	41	43	46
80HB-22	80	50	H	30	28	25	22	19	16	14	3.5	5.5	2900	380
			Q	23	34	39	45	50	55	60
80HB-28	80	50	H	36	34	32	28	25	22	19	3.5	7.5	2900	380
			Q	22	31	37	44	49	55	59
80HB-30	80	50	H	36	34	32	30	27	24	21	3.5	7.5	2900	380
			Q	32	38	43	47	52	58	62
80HB-32	80	50	H	38	36	34	32	30	28	26	3.5	11	2900	380
			Q	16	30	40	50	56	62	68
100HB-13	100	80	H	18	17	15	13	12	11	10	3.5	5.5	2900	380
			Q	50	64	75	84	89	94	98
100HB-20	100	80	H	23	22	21	20	18	16	14	3.5	7.5	2900	380
			Q	69	77	83	88	96	105	109
