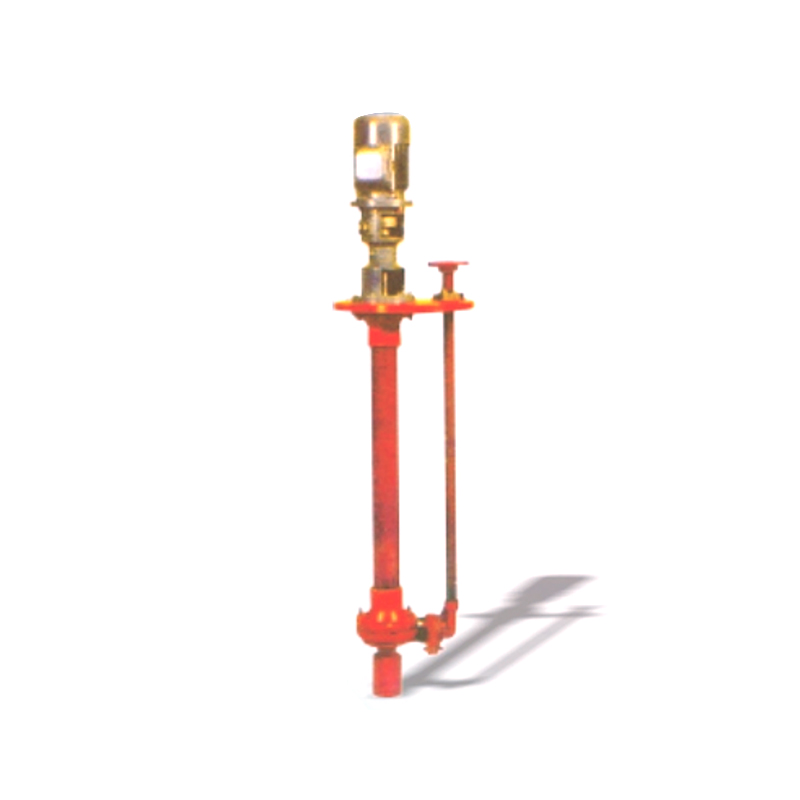

WSY Vertical FRP Fiberglass Submerged Vortex Pump

The WSY Vertical FRP Fiberglass Submerged Vortex Pump produced by our company is designed to be submerged into storage tanks or pits. The depth of submersion can be selected anywhere between 800mm and 3000mm based on the tank's height. As long as the liquid level is higher than the pump body, the pump can operate without the need to fill the pump with liquid. The top cover of the pump is equipped with a leakage hole to prevent the liquid from leaking outside the storage tank.

Get A Quote Contact Us

FSY Vertical Glass Fiber Reinforced Plastic Submerged Pump FY Stainless Steel Vertical Submersible Pump

Describe Parameter Get A Quote

The components in contact with the medium are made from modified phenolic fiberglass using polyvinyl alcohol-modified phenolic resin, which is formed by high-temperature molding. The connecting pipes and discharge pipes are made from phenolic fiberglass pipes using the semi-dry winding process. The assembly of the impeller shaft sleeve is bonded with phenolic resin and the pump shaft. All submerged parts are bonded with phenolic resin. No metal parts come into contact with the medium, ensuring nice corrosion resistance. The product is lightweight, strong, non-deformable, heat-resistant, and corrosion-resistant, making it an ideal substitute for expensive metals such as molybdenum stainless steel, titanium, and titanium alloys in terms of anti-corrosion performance.

The pump operates in a clockwise direction when viewed from the motor end, driven directly by the motor through a claw-type flexible coupling.

Features
Submersible operation without being affected by the suction head.
No need for an additional vacuum pump, saving investment.
Quiet operation, maintaining a silent work environment.
Equipped with an agitator, eliminating the need for extra stirring devices, making operation more convenient.
Does not require the construction of a pump house.
Directly works on the surface of the slurry, with higher efficiency in slurry delivery.

Applications
The WSY Vertical FRP Fiberglass Submerged Vortex Pump is widely used in industries such as chemicals, petrochemicals, metallurgy, dyes, pesticides, pharmaceuticals, rare earths, fertilizers, and more. It is the ideal equipment for transporting corrosive media, such as non-oxidizing acids (e.g., hydrochloric acid, dilute sulfuric acid, formic acid, acetic acid, butyric acid), that do not contain suspended solid particles, are not prone to crystallization, and have a temperature not exceeding 100°C.

Certificate

From material traceability to performance testing, from energy efficiency optimization to environmental compliance, we fulfill our commitment with strength - ensuring that every fluid solution can withstand professional inspection, and providing "zero risk" cooperation guarantee for customers in the industrial, municipal, and fire protection fields.

ABOUT US

Zhejiang Chuangken Fluid Co., Ltd.

Zhejiang Chuangken Fluid Co., Ltd. was established in 2005 with a registered capital of 10.8 million yuan. It is a technology-innovative enterprise that combines research and development with production, specializing in the production of multi-stage pumps, centrifugal pumps, fire pumps, sewage pumps, complete sets of water supply equipment, control cabinets and other products. Since its establishment, "Chuangken" has always adhered to the business development path of technological innovation, and is a comprehensive enterprise dedicated to the research, development, manufacturing and sales services of international high-quality fluid industrial products. We believe in the power of technological innovation. In 2015, the ternary fluid theory and various model technologies and processing technologies were used, and the products were continuously optimized through absorption, transformation and innovation. According to the different media, the corresponding materials and structures are used, so that a series of products have been widely used and popularized. "Chuangken" has important application partners in the fields of aviation, chemical industry, chemical fiber, pharmaceuticals, food, papermaking, metallurgy, HVAC, electricity, energy, environmental protection engineering, and life supporting. In 2019, "Chuangken" successfully became a teaching, learning and research cooperation unit with Ningbo Institute of Technology, Taiyuan University of Technology, Tianjin Polytechnic University School of Chemical Engineering and Technology, Guangdong Environmental Protection Engineering Vocational College, Karamay Vocational and Technical College, Liming Vocational University, Weifang Vocational and Technical College, Yunnan Open University and other colleges and universities with excellent quality and technology, allowing "Chuangken" to contribute to the cultivation and delivery of professional talents in China's pump and valve industry. Technological research and development, mature products, excellent quality, and perfect after-sales service have always been our strategic policy.

Message Feedback

Type		Flow rate		Lift	Rotational speed	Power	Impeller diametert	Suction height


		(m³/h )	(L/s)
25WSY-22	a	2.88 4.05 6.48	0.80 1.12 1.80	22 18 15	2900	2.2	120	800-3000

25WSY-30		2.88 6.48 9.00	0.80 1.80 2.52	30 20 15	2900	3	120

40WSY-258		5.76 8.10 13.32	1.60 2.24 3.70	25 20 15	2900	4	142


40FSY-22		8.10 15.84 20.00	2.24 4.4 5.50	22 18 15	2900	3	140



40FSY-18		6.48 15.00 21.60	1.80 4.17 6.00	18 15 12	2900	2.2	132



40WSY-50		6.48 8.64 14.40	1.80 2.40 4.00	50 45 35	2900	7.5	144



40FSY-35		10 20 30	2.8 5.5 8.3	34 30 24	2900	4	162



50FSY-35		30 45 55	8.3 12.5 15.1	35 32 28	2900	7.5	182



50FSY-35A	b	25 35 45	7.0 9.7 12.5	26 25 22	2900	5.5	168



50FSY-20		18 30 35	5.0 8.3 9.7	20 16 12	2900	4	150




80FSY-35		56 92 110	15.5 25.5 30.5	35 29 25	2900	15	184



80FSY-35A		45 69 90	12.5 19.2 25.0	26 22 19	2900	11	163
