W Type Water Ejector Vacuum Pump

The W Type Water Ejector Vacuum Pump is a mechanical device that combines three effective functions: vacuum generation, condensation, and drainage.

Get A Quote Contact Us

No previous article SZ Single Stage Water Ring Vacuum Pump

Describe Parameter Get A Quote

It operates by utilizing a stream of water at a certain pressure, which is ejected through a nozzle arranged symmetrically and inclined at a specific angle, converging at a focal point. Due to the high velocity of the ejected water, a negative pressure is formed around it, creating a vacuum in the chamber. Additionally, since the secondary steam directly contacts the ejected water, a heat exchange occurs, causing of the steam to condense into water. A small amount of steam that remains uncondensed, along with non-condensable gases, is mixed and compressed through friction with the high-speed water flow, and is then expelled through a diffuser, further enhancing the vacuum within the chamber.

W Type Water Ejector Vacuum Pumps are widely used in vacuum and evaporation systems for various processes such as vacuum water extraction, vacuum evaporation, vacuum filtration, vacuum crystallization, drying, and deodorization. They are essential equipment in industries such as sugar, pharmaceuticals, chemicals, food processing, salt production, MSG, dairy, fermentation, as well as some light industries and defense sectors. However, there are relatively few manufacturers producing water ejectors, and the available models are not diverse. In response, our company has continuously improved the design in recent years by incorporating multiple nozzles, steam rings (guide discs), and a multi-stage pump for water intake, installed at a low position. With an installation height of just 4.5 meters, these enhancements improve the overall performance and bring a certain level of technological advancement, making the water ejector a revolutionary device in vacuum condensation systems.

Product Features:
The W Type Water Ejector Vacuum Pump features a compact and precise structure with high strength, designed for vacuum evaporation systems. By combining the functions of a condenser and a vacuum pump into a single unit, it significantly simplifies the process. Compared to traditional systems using separate vacuum pumps and condensers, the W Type Water Ejector Vacuum Pump reduces the need for additional equipment such as vacuum pumps, condensers, and separators. Additionally, it offers the following advantages:

1. Compact and Lightweight: The water ejector has a small volume, light weight, and compact structure. It is highly efficient and consumes less power compared to vacuum pump systems, providing a more cost-effective solution for investors.

2. Simple Operation and Easy Maintenance: It requires no specialized personnel for management. With no mechanical drive components, the noise level is low, and there is no need for lubrication oil, making maintenance easier.

3. Outdoor and Low-Position Installation: The ejector can be installed at ground level outdoors, requiring less space and reducing building area and installation costs.

Certificate

From material traceability to performance testing, from energy efficiency optimization to environmental compliance, we fulfill our commitment with strength - ensuring that every fluid solution can withstand professional inspection, and providing "zero risk" cooperation guarantee for customers in the industrial, municipal, and fire protection fields.

ABOUT US

Zhejiang Chuangken Fluid Co., Ltd.

Zhejiang Chuangken Fluid Co., Ltd. was established in 2005 with a registered capital of 10.8 million yuan. It is a technology-innovative enterprise that combines research and development with production, specializing in the production of multi-stage pumps, centrifugal pumps, fire pumps, sewage pumps, complete sets of water supply equipment, control cabinets and other products. Since its establishment, "Chuangken" has always adhered to the business development path of technological innovation, and is a comprehensive enterprise dedicated to the research, development, manufacturing and sales services of international high-quality fluid industrial products. We believe in the power of technological innovation. In 2015, the ternary fluid theory and various model technologies and processing technologies were used, and the products were continuously optimized through absorption, transformation and innovation. According to the different media, the corresponding materials and structures are used, so that a series of products have been widely used and popularized. "Chuangken" has important application partners in the fields of aviation, chemical industry, chemical fiber, pharmaceuticals, food, papermaking, metallurgy, HVAC, electricity, energy, environmental protection engineering, and life supporting. In 2019, "Chuangken" successfully became a teaching, learning and research cooperation unit with Ningbo Institute of Technology, Taiyuan University of Technology, Tianjin Polytechnic University School of Chemical Engineering and Technology, Guangdong Environmental Protection Engineering Vocational College, Karamay Vocational and Technical College, Liming Vocational University, Weifang Vocational and Technical College, Yunnan Open University and other colleges and universities with excellent quality and technology, allowing "Chuangken" to contribute to the cultivation and delivery of professional talents in China's pump and valve industry. Technological research and development, mature products, excellent quality, and perfect after-sales service have always been our strategic policy.

Message Feedback

①	②	③	④	⑤	⑥	⑦	⑧

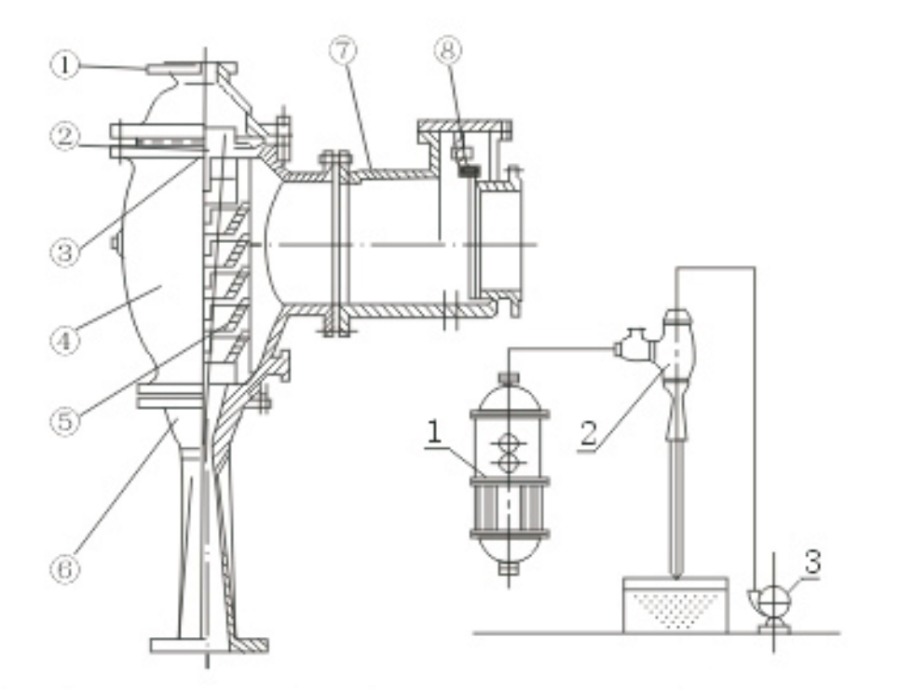

Nozzle Cover	Mouthpiece Plate	Nozzle	Body	Guide Cover Plate	Diffuser Tube	Check Valve Body	Valve Plate
1	2	3
Vacuum Evaporation Pan	Hydrojet	Water Pumps

Type	Evaporation	MPA	Lift	Flow rate


	L/h	mmHg	m	m³/h
W-100L	100	0.097(680-720)	45	18
W-200L	200	0.097(680-720)	45	18

W-300L	300	0.097(680-720)	45	18

W-400L	400	0.097(680-720)	45	18

W-500L	500	0.097(680-720)	45	32

W-600L	600	0.097(680-720)	45	32

W-700L	700	0.097(680-720)	45	32
W-800L	800	0.097(680-720)	50	32
W-900L	900	0.097(680-720)	50	32
W-1000L	1000	0.097(680-720)	50	32
W-1200L	1200	0.097(680-650)	50	32
W-1500L	1500	0.097(680-650)	50	108

W-1800L	1800	0.097(680-650)	50	108

W-2000L	2000	0.097(680-650)	50	108

W-3000L	3000	0.097(680-650)	50	108

Remarks: For the above models, the installation height is >4.5m, and the water pressure test of the body is 0.6MPa without leakage.
