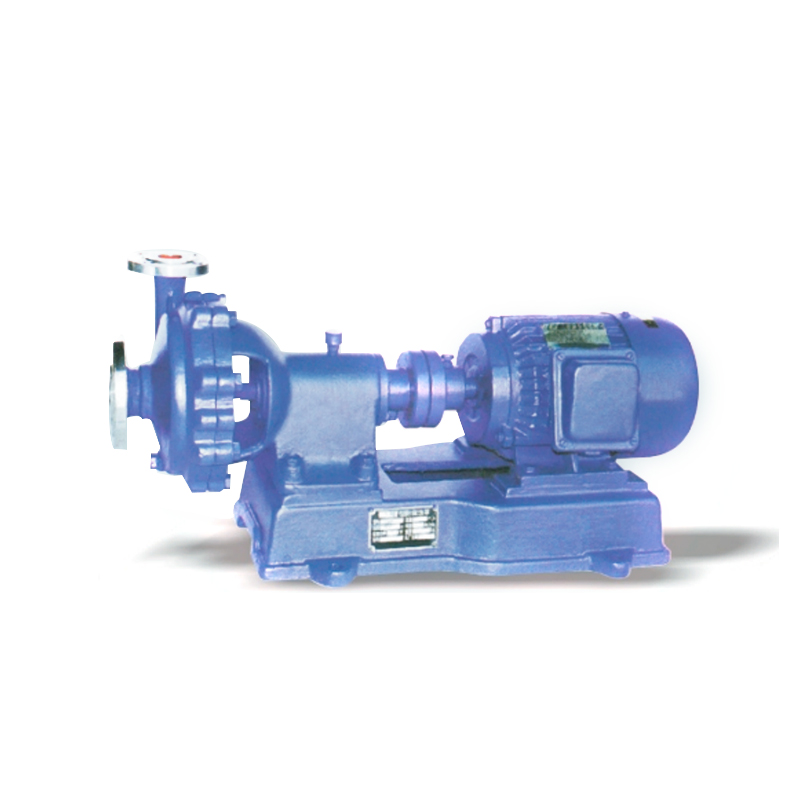

FB/AFB Stainless Steel Corrosive Resistant Centrifugal Pump

The FB series pump is suitable for transporting media without solid particles, with a medium temperature range of -20°C to 130°C and an inlet pressure not exceeding 2 kg/cm².

Get A Quote Contact Us

FY Stainless Steel Vertical Submersible Pump IS/IH Single-stage Clean Water Centrifugal Pump

Describe Parameter Get A Quote

The AFB stainless steel corrosive-resistant centrifugal pump is an improved design based on the F series corrosive-resistant pump. It utilizes a new type of double-impeller power shaft sealing device and is a single-stage, single-suction cantilever-type corrosive-resistant centrifugal pump.

The parts in contact with the conveyed medium are made of 1Cr18Ni9Ti material. This pump is used for transporting liquid without solid particles and with corrosive properties, with a medium temperature range of -20°C to 130°C. The pump inlet pressure should not exceed 2 kg/cm².

Features
Advanced hydraulic model
Novel structure with high strength
Combined single and double mechanical seals for high efficiency
Compact structure
Stable performance
Reliable operation

Application
FB/AFB series chemical centrifugal pumps are widely used in industries such as chemicals, petroleum, metallurgy, light industry, chemical fibers, environmental protection, food, medicine, and more. These pumps offer the advantages of stable and reliable performance, nice sealing, attractive appearance, and ease of maintenance. They play a crucial role in improving product quality, reducing operation risks, minimizing leakage, and preventing pollution.

Performance Parameters

Type	Flow rate		Lift	Rotational speed	Efficiency	Shaft power	Matching power	Corrosion allowance
Type	(m³/h)	(L/s)	Lift	Rotational speed	Efficiency	Shaft power	Matching power	Corrosion allowance
25FB-16	3.6	1	16	2900	33	0.48	1.1	4.0
25FB-16A	3.27	0.91	12.5	2900	34	0.34	0.75	4.0
25FB-25	3.6	1	25	2900	30	0.82	1.5	4.0
25FB-25A	3.27	0.91	20	2900	31	0.57	1.1	4.0
25FB-40	3.6	1	40	2900	23	1.71	3	4.0
25FB-40A	3.27	0.91	33.5	2900	24	1.21	2.2	4.0
40FB-16	7.2	2	16	2900	44	0.71	1.5	4.0
40FB-16A	6.55	1.82	12	2900	46.7	0.5	1.1	4.0
40FB-20	7.2	2	20	2900	42	0.93	1.5	4.0
40FB-25	7.2	2	25	2900	39	1.26	2.2	4.0
40FB-25A	6.55	1.82	20.5	2900	40	0.94	1.5	4.0
40FB-40	7.2	2	40	2900	32	2.45	3	4.0
40FB-40A	6.55	1.82	32	2900	33.5	1.73	2.2	4.0
40FB-63	7.2	2	63	2900	27	5.42	7.5	4.0
40FB-63A	6.72	1.87	56	2900	29	3.75	5.5	4.0
50FB-16	14.4	4	16	2900	56	1.09	2.2	3.5
50FB-16A	13.1	3.64	12	2900	57	0.81	1.5	3.5
50FB-25	14.4	4	25	2900	52	1.83	4	3.5
50FB-25A	13.1	3.64	20	2900	51.5	1.42	3	3.5
50FB-40	14.4	4	40	2900	46	3.32	5.5	3.5
50FB-40A	13.1	3.64	32.5	2900	45	2.62	5.5	3.5
50FB-63	14.4	4	63	2900	39	6.16	11	3.5
50FB-63	14.4	4	63	2900	39	6.16	11	3.5
50FB-63A	13.1	3.64	54.5	2900	38	5.24	7.5	3.5
65FB-25	28.8	8	25	2900	62	3.16	5.5	3.5
65FB-25A	26.2	7.28	20	2900	62	2.36	4	3.5
65FB-30	28.8	8	30	2900	60.5	3.89	7.5	3.5
65FB-30A	26.2	7.28	25	2900	61	2.79	5.5	3.5
65FB-40	28.8	8	40	2900	57.5	5.46	11.5	3.5
65FB-40	28.8	8	40	2900	57.5	5.46	11.5	3.5
65FB-40A	26.2	7.28	32	2900	58	4	7.5	3.5
65FB-64	28.8	8	64	2900	52.5	9.57	15	3.5
65FB-64A	26.2	7.28	55	2900	51.5	7.82	7.5	3.5
80FB-15	54.4	15	15	2900	69	3.2	5.5	3.0
80FB-15A	49.1	13.65	11.5	2900	69	2.62	4	3.0
80FB-24	54.4	15	24	2900	68	5.19	7.5	3.0
80FB-24A	49.1	13.65	19	2900	68	3.94	7.5	3.0
80FB-38	54.4	15	38	2900	66.5	8.41	15	3.0
80FB-38A	49.1	13.65	30.5	2900	66.5	6.34	11	3.0
80FB-60	54.4	15	60	2900	62.8	14.06	22	3.0
80FB-60A	49.1	13.65	52	2900	62.5	11.56	18.5	3.0
100FB-23	100.8	28	23	2900	73	8.65	15	3.0
100FB-23A	91.8	25.5	17.5	2900	73	6.51	11	3.0
100FB-37	100.8	28	37	2900	73	13.9	22	3.0
100FB-37A	91.8	25.5	29	2900	70.5	11	18.5	3.0
100FB-57	100.8	28	57	2900	70.5	22.2	37	3.0
100FB-57A	91.8	26.2	52	2900	70.5	18.77	37	3.0
150FB-22	190.8	53	22	2900	77	14.86	22	2.5
150FB-22	190.8	53	22	2900	77	14.86	22	2.5
150FB-22A	173.5	48.2	17.5	2900	78	10.6	18.5	2.5
150FB-35	190.8	53	35	2900	76	23.94	37	2.5
150FB-35A	173.5	48.2	28	2900	76	17.42	30	2.5
150FB-56	190.8	53	56	2900	76	38.3	55	2.5
150FB-56	190.8	53	56	2900	76	38.3	55	2.5
150FB-56A	173.5	48.2	50	2900	76	32.1	37	2.5
