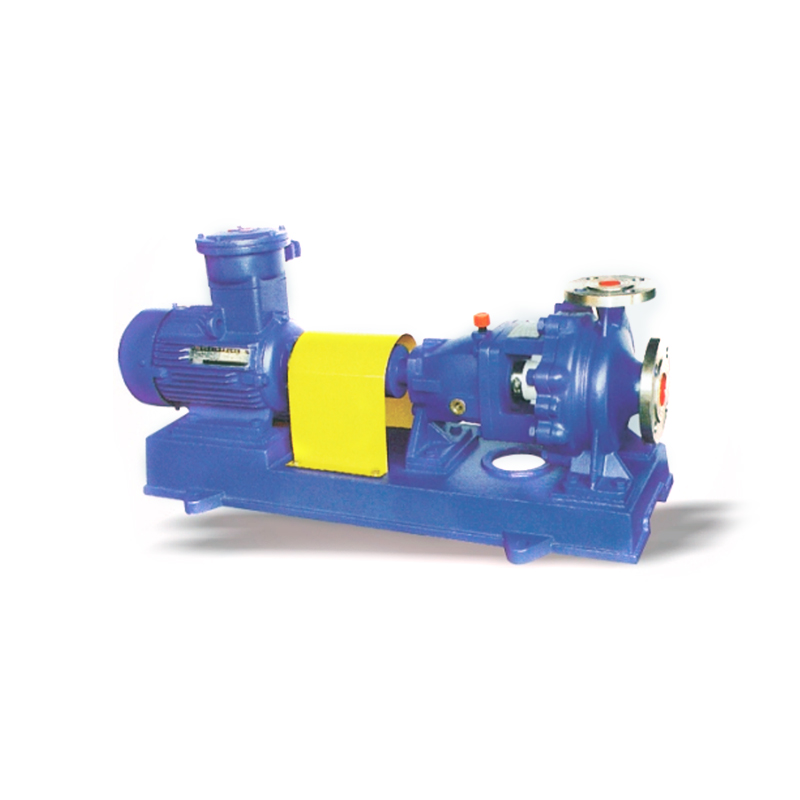

IS/IH Single-stage Clean Water Centrifugal Pump

The IS and IH series single-stage single-suction (axial suction) centrifugal pumps are designed in accordance with the international standard ISO2858. They are suitable for industrial and municipal water supply, drainage, and can also be used for agricultural irrigation and drainage. These pumps are intended for transporting clean water or other liquids with physical and chemical properties similar to water, with a temperature not exceeding 80°C.

Get A Quote Contact Us

FB/AFB Stainless Steel Corrosive Resistant Centrifugal Pump GC Horizontal Centrifugal Boiler Feed Pump

Describe Parameter Get A Quote

Performance Range of IS Series (at design point):
Speed: 2900 r/min and 1450 r/min
Inlet diameter: 50-200 mm
Flow rate: 6.3-400 m³/h
Head: 5-125 m

Advantages
The full range of hydraulic performance is well-balanced, offering users a wide selection and ease of maintenance. The pump features a simple structure, reliable performance, compact size, light weight, nice anti-cavitation ability, and low power consumption. It is easy to use and maintain.

Applications
The IS/IH series single-stage suction centrifugal pumps are used for industrial and municipal water supply, drainage, as well as agricultural irrigation and drainage. They are suitable for transporting clean water or other liquids with similar physical and chemical properties to clean water.

1. Cleanout systems
2. Food processing and pharmaceutical production
3. Environmental protection systems
4. Wastewater treatment for industries such as paper making, metallurgy, galvanization, smelting, and dyeing
5. Electroplating and dyeing systems
6. Industrial and chemical sump treatment
7. Explosion-proof motors for transporting oil, alcohol, and other explosive liquids

Performance Parameters

Type	Flow rate (m³/h)	T(m) Lift	Rotational speed	Motor power	фmm
Type	Flow rate (m³/h)	T(m) Lift	Rotational speed	Motor power	Suction	Discharge
IS50-32-125	12.5	20	2900	2.2	50	32
IS50-32-125	6.3	5	1450	0.55	50	32
IS50-32-160	12.5	32	2900	3	50	32
IS50-32-160	6.3	8	1450	0.55	50	32
IS50-32-200	12.5	50	2900	5.5	50	32
IS50-32-200	6.3	12.5	1450	0.75	50	32
IS50-32-250	12.5	80	2900	11	50	32
IS50-32-250	6.3	20	1450	1.5	50	32
IS65-50-125	25	20	2900	3	65	50
IS65-50-125	12.5	5	1450	0.55	65	50
IS65-50-160	25	32	2900	5.5	65	50
IS65-50-160	12.5	8	1450	0.75	65	50
IS65-40-200	25	50	2900	7.5	65	40
IS65-40-200	12.5	12.5	1450	1.1	65	40
IS65-40-250	25	80	2900	15	65	40
IS65-40-250	12.5	20	1450	2.2	65	40
IS65-40-315	25	125	2900	30	65	40
IS65-40-315	12.5	32	1450	4	65	40
IS80-65-125	50	20	2900	5.5	80	65
IS80-65-125	25	5	1450	0.75	80	65
IS80-65-160	50	32	2900	7.5	80	65
	25	8	1450	1.5	80	65
	25	8	1450	1.5	80	65
IS80-50-200	50	50	2900	15	80	50
IS80-50-200	25	12.5	1450	2.2	80	50
IS80-50-250	50	80	2900	22	80	50
IS80-50-250	25	20	1450	3	80	50
IS80-50-315	50	125	2900	37	80	50
	25	32	1450	5.5	80	50
	25	32	1450	5.5	80	50
IS100-80-125	100	20	2900	11	100	80
IS100-80-125	50	5	1450	1.5	100	80
IS100-80-160	100	32	2900	15	100	80
IS100-80-160	50	8	1450	2.2	100	80
IS100-65-200	100	50	2900	22	100	65
IS100-65-200	50	12.5	1450	4	100	65
IS100-65-250	100	80	2900	37	100	65
IS100-65-250	50	20	1450	5.5	100	65
IS100-65-315	100	125	2900	75	100	65
IS100-65-315	50	32	1450	11	100	65
IS125-100-200	200	50	2900	45	125	100
IS125-100-200	100	12.5	1450	7.5	125	100
IS125-100-250	200	80	2900	75	125	100
IS125-100-250	100	20	1450	11	125	100
IS125-100-315	200	125	2900	110	125	100
IS125-100-315	100	32	1450	15	125	100
IS125-100-400	100	50	1450	30	125	100
IS150-125-250	200	20	1450	18.5	150	125
IS150-125-250	200	20	1450	18.5	150	125
IS150-125-315	200	32	1450	30	150	125
IS150-125-400	200	50	1450	45	150	125
IS200-150-250	400	20	1450	37	200	150
IS200-150-315	400	32	1450	55	200	150
IS200-150-315	400	32	1450	55	200	150
IS200-150-400	400	50	1450	90	200	150
