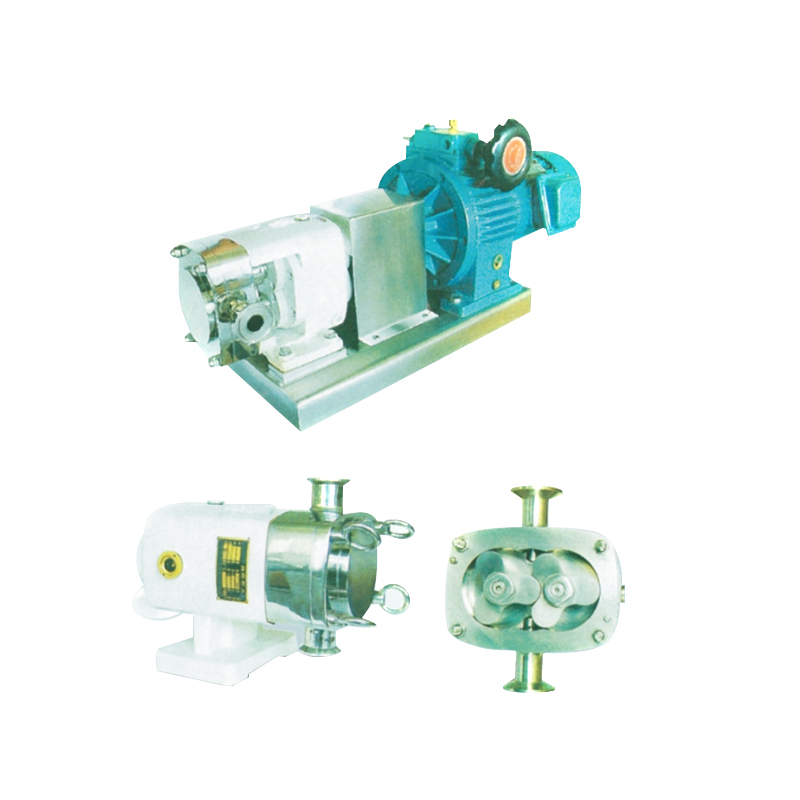

LQ3A Sanitary Stainless Steel Rotor Pump (Lobe Pump)

The LQ3A Sanitary Stainless Steel Rotor Pump (Lobe Pump) is widely used as a sanitary lobe pump. It is a type of positive displacement pump. The LQ3A Sanitary Stainless Steel Rotor Pump is capable of handling more viscous liquids, making it a high-viscosity pump.

Get A Quote Contact Us

IHF Fluoroplastic Lining Chemical Centrifugal Pump HBX Stainless Steel Corrosion-Resistance Self-Priming Pump

Describe Parameter Get A Quote

Features
All parts in contact with the medium (material) are made of stainless steel (SUS304, AISI316, 316L), fully compliant with sanitary standards.
Suitable for transporting high-viscosity, concentrated, or particulate-containing materials.
Temperature range: -30°C to +200°C.
High pressure, suitable for long-distance and high-resistance metered delivery.
Low rotational speed, typically between 200 RPM and 600 RPM, ensuring that the transported material maintains its original quality without undergoing any chemical or physical reactions.
No contact between the rotors, ensuring no wear even after long-term use, resulting in smooth operation and low noise.
Easy to assemble and disassemble, convenient for cleaning, and maintains sanitary conditions.

Applications
Dairy Products: Yogurt, fresh cream, ice cream, cheese curds, and whey.
Beverages: Beer, malt juice, yeast, soda, fruit concentrates, and fruit juice beverages.
Food Products: Tomato paste, fruit puree, vegetable paste, pudding, jam, jelly, seasonings, fruit fillings, sweeteners, yeast paste, salad dressings, bread dough, meat paste, minced meat, lard, and edible oils.
Confectionery: Syrups, light cream fillings, chocolate.
Cosmetics: Creams and lotions, hair gels, hair dyes, essential oils.
Pharmaceuticals: Pill paste, tinctures, emulsions, and ointments.
Chemical Industry: Fats, solvents, resins, polymers, and dyes.

This pump is ideal for handling various fluids that require high hygiene standards, and its robust design makes it suitable for demanding industrial applications.

Certificate

From material traceability to performance testing, from energy efficiency optimization to environmental compliance, we fulfill our commitment with strength - ensuring that every fluid solution can withstand professional inspection, and providing "zero risk" cooperation guarantee for customers in the industrial, municipal, and fire protection fields.

ABOUT US

Zhejiang Chuangken Fluid Co., Ltd.

Zhejiang Chuangken Fluid Co., Ltd. was established in 2005 with a registered capital of 10.8 million yuan. It is a technology-innovative enterprise that combines research and development with production, specializing in the production of multi-stage pumps, centrifugal pumps, fire pumps, sewage pumps, complete sets of water supply equipment, control cabinets and other products. Since its establishment, "Chuangken" has always adhered to the business development path of technological innovation, and is a comprehensive enterprise dedicated to the research, development, manufacturing and sales services of international high-quality fluid industrial products. We believe in the power of technological innovation. In 2015, the ternary fluid theory and various model technologies and processing technologies were used, and the products were continuously optimized through absorption, transformation and innovation. According to the different media, the corresponding materials and structures are used, so that a series of products have been widely used and popularized. "Chuangken" has important application partners in the fields of aviation, chemical industry, chemical fiber, pharmaceuticals, food, papermaking, metallurgy, HVAC, electricity, energy, environmental protection engineering, and life supporting. In 2019, "Chuangken" successfully became a teaching, learning and research cooperation unit with Ningbo Institute of Technology, Taiyuan University of Technology, Tianjin Polytechnic University School of Chemical Engineering and Technology, Guangdong Environmental Protection Engineering Vocational College, Karamay Vocational and Technical College, Liming Vocational University, Weifang Vocational and Technical College, Yunnan Open University and other colleges and universities with excellent quality and technology, allowing "Chuangken" to contribute to the cultivation and delivery of professional talents in China's pump and valve industry. Technological research and development, mature products, excellent quality, and perfect after-sales service have always been our strategic policy.

Message Feedback

Type	Displacement per 100r	Recommended speed range	Corresponding flow rate	Motor Power
	(L)	(rpm)	(L/H)
LQ3A-6	6	200~500	650~1600	1.5

LQ3A-8	8	200~500	850~2160	1.5


LQ3A-12	12	200~500	1300~3200	2.2

LQ3A-20	20	200~500	2100~5400	3

LQ3A-30	30	200~400	3200~6400	4

LQ3A-36	36	200~400	3800~7600	5.5
LQ3A-52	52	200~400	5600~11000	5.5

LQ3A-66	66	200~400	7100~14000	7.5
LQ3A-78	78	200~400	9000~18000	7.5
LQ3A-100	100	200~400	11000~22000	11
LQ3A-135	135	200~400	5000~30000	11
