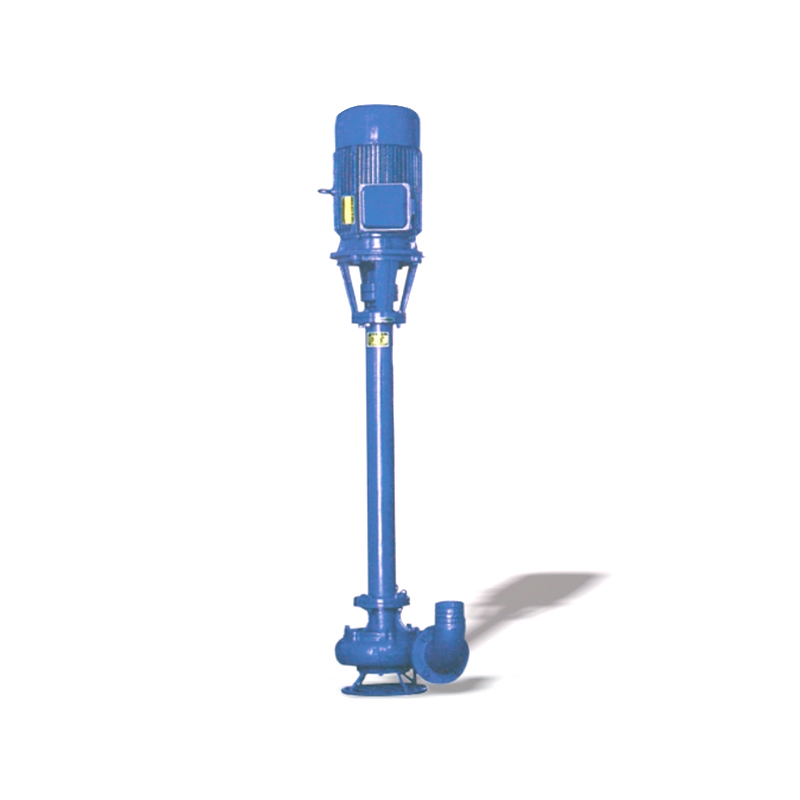

NL Vertical Seage and Slurry Pump

The NL Vertical Seage and Slurry Pump is a single-stage, priming, vertical centrifugal pump. It consists of components such as the volute casing, impeller, pump seat, pump casing, motor seat, and motor. The impeller nut is made of raw iron, which is highly durable, corrosion-resistant, and easy to process.

Get A Quote Contact Us

W Single Stage Vortex Pump IHF Fluoroplastic Lining Chemical Centrifugal Pump

Describe Parameter Get A Quote

The impeller features a three-blade, single-cord arc design, with a semi-open impeller selected for its high strength, corrosion resistance, ease of processing, good flow capability, and high efficiency. To reduce weight and minimize machining, the pump shaft is made from high-quality carbon steel, cold-drawn into round bars.

The pump casing is equipped with four skeleton oil seals and a shaft sleeve to prevent shaft wear and extend the shaft's service life. The pump can be used either vertically or inclined, occupying minimal space. The volute casing works in the medium it pumps, ensuring easy startup without the need for priming. The pump operates in a clockwise direction when viewed from the motor's tail.

The NL Vertical Seage and Slurry Pump is available in various lengths to suit different applications, allowing users to choose the suitable specification according to their needs.

Main Applications
1. The NL Vertical Seage and Slurry Pump is widely used in industries such as mining, paper manufacturing, printing and dyeing, environmental protection, graphite, mica, gold, ceramics, oil refining, petrochemical, chemicals, agriculture, salt, iodine, dyeing, brewing, food processing, fertilizers, coking, construction, marble processing, and wastewater treatment. It is particularly effective for transporting mud, sand, sewage, sludge, and other contaminated liquids containing suspended solids.

2. When combined with high-pressure water pumps or water guns, the NL pump can form a hydraulic mechanized earth-moving system for small-scale water conservancy projects, such as land reclamation, river and pond dredging, drilling, and excavation. It can also be applied in city air defense projects and underground construction projects.

3. The pump can also be used for applications like pond aeration or maintaining clear water in fish ponds.

Certificate

From material traceability to performance testing, from energy efficiency optimization to environmental compliance, we fulfill our commitment with strength - ensuring that every fluid solution can withstand professional inspection, and providing "zero risk" cooperation guarantee for customers in the industrial, municipal, and fire protection fields.

ABOUT US

Zhejiang Chuangken Fluid Co., Ltd.

Zhejiang Chuangken Fluid Co., Ltd. was established in 2005 with a registered capital of 10.8 million yuan. It is a technology-innovative enterprise that combines research and development with production, specializing in the production of multi-stage pumps, centrifugal pumps, fire pumps, sewage pumps, complete sets of water supply equipment, control cabinets and other products. Since its establishment, "Chuangken" has always adhered to the business development path of technological innovation, and is a comprehensive enterprise dedicated to the research, development, manufacturing and sales services of international high-quality fluid industrial products. We believe in the power of technological innovation. In 2015, the ternary fluid theory and various model technologies and processing technologies were used, and the products were continuously optimized through absorption, transformation and innovation. According to the different media, the corresponding materials and structures are used, so that a series of products have been widely used and popularized. "Chuangken" has important application partners in the fields of aviation, chemical industry, chemical fiber, pharmaceuticals, food, papermaking, metallurgy, HVAC, electricity, energy, environmental protection engineering, and life supporting. In 2019, "Chuangken" successfully became a teaching, learning and research cooperation unit with Ningbo Institute of Technology, Taiyuan University of Technology, Tianjin Polytechnic University School of Chemical Engineering and Technology, Guangdong Environmental Protection Engineering Vocational College, Karamay Vocational and Technical College, Liming Vocational University, Weifang Vocational and Technical College, Yunnan Open University and other colleges and universities with excellent quality and technology, allowing "Chuangken" to contribute to the cultivation and delivery of professional talents in China's pump and valve industry. Technological research and development, mature products, excellent quality, and perfect after-sales service have always been our strategic policy.

Message Feedback

Type	Rotational speed	Flow rate	(m)	%	kw

		L/min	Lift	Efficiency	Motor power
NL50-8 NL50A-8	1430	20-30	8-9	42	1.5


NL50-12 NL50A-12	1430	25-38	12-14	41	3


NL65-16 NL65A-16	1430	50-60	15-18	42	5.5

NL76-9 NL76A-9	1430	50-70	9-10	59	3


NL80-12 NL80A-12	1430	80-120	11-13	56	7.5


NL100-16 NL100A-16	1430	80-100	15-17	61	15
NL150-12 NL150A-12	1430	100-150	11-13	66	18.5


NL150-16 NL150A-16	1430	120-180	15-20	65	22
