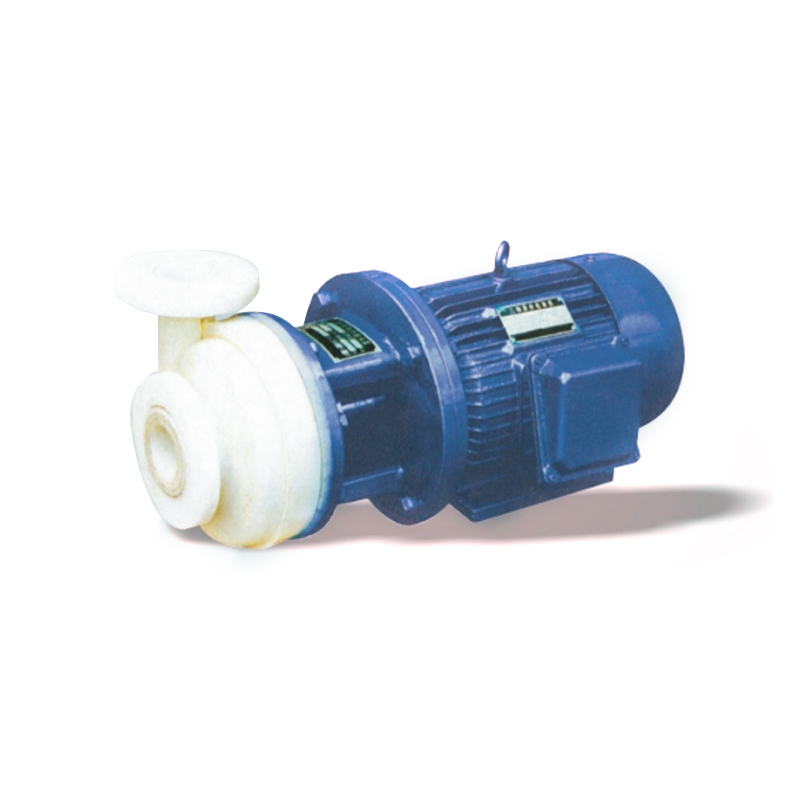

PF(FS) Corrosion-Resistant Chemical Centrifugal Pump

The PF(FS) Corrosion-Resistant Chemical Centrifugal Pump features a pump body, pump cover, impeller, and other parts in contact with the conveyed medium, all made from polyvinylidene fluoride (PVDF) or reinforced polypropylene, molded or injection-molded. PVDF plastic is known for its high mechanical strength and nice corrosion resistance, making it one of the  widely used engineering plastics worldwide.

Describe Parameter Get A Quote

Applications
The PF(FS) Corrosion-Resistant Chemical Centrifugal Pump is designed to handle a wide range of corrosive chemicals, including sulfuric acid, hydrochloric acid, nitric acid, acetic acid, phosphoric acid, chromic acid, oxalic acid, hydrofluoric acid, alkaline solutions, organic solvents, and oxidizing agents, within a temperature range of -50°C to 80°C. It is a highly energy-efficient pump suitable for various industrial sectors such as chemicals, chlor-alkali, fertilizers, dyes, reagents, pesticides, pharmaceuticals, electroplating, and environmental protection, specifically for transporting non-particle-containing corrosive media.


Structural Description

The PF(FS) Corrosion-Resistant Chemical Centrifugal Pump features a direct-coupled structure, with the pump body and bracket connected to the motor flange. The bracket supports the pump body, and the impeller is directly coupled to the motor shaft. Key features of this pump series include its simple and compact design, minimal number of parts, and nice performance.

The rotation direction of the pump, when viewed from the self-priming inlet towards the motor, is clockwise, with the pump outlet directed vertically upwards.

For sealing, the pump uses a corrugated PTFE (F4) diaphragm and an external corrosion-resistant mechanical seal.
